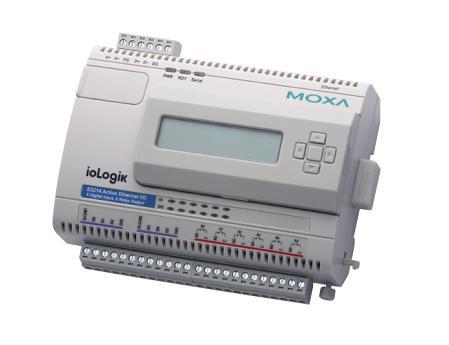

MOXA Iologik Ethernet I/O Server. 24Vdc Factory Sealed

ioLogik E2214

Active Ethernet I/O with 6 digital inputs and 6 relay outputs

Features and Benefits

• 6 DIs supporting PNP, NPN, and Dry contact
• 6 Form A relay output (Normal Open)
• Relay specification: 5A/250 VAC, 5A/30 VDC
• Instant event messaging by TCP/UDP/e-mail/SNMP trap
• DI and Relay counter saving when power off
• PC-based configuration utility and web console
• Power On default relay status setting with sequence
• Easy-to-use Click&Go™ Logic for local output control
• Windows/WinCE VB/VC and Linux C API
• I/O control over Modbus/TCP and SNMP protocol

Introduction

Remote Ethernet Relay Control

• The ioLogik E2214 is a stand-alone Active Ethernet I/O product with 6 digital inputs and 6 relay outputs. The DIN-Rail mountable E2214 can be connected to digital switches, alarm lights, buzzers, and warning sirens over Ethernet and IP-based networks. The ioLogik E2214 also records the built-in relay output usage counter. Even when a sudden power failure is encountered, the ioLogik E2214 will still be able to record the relay output usage counter in its internal storage before the power is completely shut down.

•  LAN:
Ethernet	10/100Mbps, RJ45
Protection	1.5 KV magnetic isolation
Protocols	Modbus/TCP, TCP/IP, UDP, DHCP, Bootp, SNMP (MIB for I/O and Network), HTTP, SNTP

•  Serial:
Interface	RS-485-2w: Data+, Data-, GND
Serial Line Protection	15 KV ESD for all signals

•  Serial Communication Parameters:
Data Bits	8
Stop Bits	1
Parity	None
Flow Control	None
Protocols	Modbus/RTU
Speed	1200 to 115200 bps

•  Digital Input:
Channels	6 digital inputs
Sensor Type	NPN, PNP, and Dry contact
I/O Mode	DI or Event Counter (up to 900 Hz)
Dry Contact	Logic 0: short to GND, Logic 1: open
Wet Contact	Logic 0: 0 to 3 VDC, Logic 1: 10 to 30 VDC
Common Type	6 points/2 COM
Isolation	2K VDC or 3K Vrms
Counter Frequency	900 Hz
Digital Filtering Time Interval	10 ms
Over-voltage Protection	36 VDC
Relay Counter Saving	Yes

•  Digital Output:
Channels	6 Form A (N.O.) relay outputs, 5A
Contact Rating	5A @ 30 VDC, 5A @ 240 VAC, 5A @ 110 VAC
Inductance Load	2A
Resistance Load	5A
Breakdown Voltage	500 VAC
Relay On/Off Time	10 ms, 5 ms (Max.)
Initial Insulation Resistance	1G min. @ 500 VDC
Expected Life	100,000 times (Typical)
Initial Contact Resistance	30m ohms (Max.)
Pulse Output	20 operation times per minutes at rated load
Isolation	3K VDC or 2K Vrms

•  Physical Characteristics:
Wiring	I/O cable max. 14AWG

•  Environmental Limits:
Operating Temperature	-10 to 60°C (14 to 140°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

•  Power Requirements:
Power Input	24 VDC nominal, 12 to 48 VDC
DO Power	24 VDC nominal, up to 30 VDC

•  Agency Approvals:
EMI	FCC Part 15, CISPR (EN55022) class A
EMS	IEC 61000-4, IEC 61000-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6

•  Warranty:
Warranty Period	2 years

	Model No.	Descritpion
	ioLogik E2214	Active Ethernet I/O with 6 digital inputs and 6 relay outputs
	LDP1602	LCD module with 16 x 2 text display and 5 buttons
