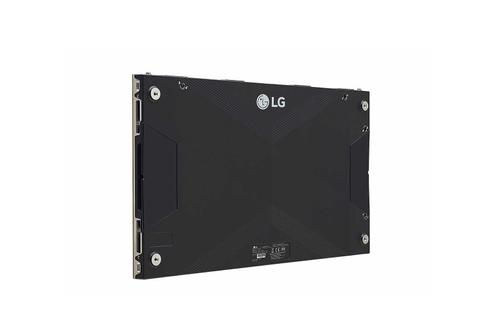

LG LSCB018-RK LED Signage P1.8mm 163inch FHD 800cd/m2 Front Service EMC Class B. wallmount webOS ready

LSCB018

Features:

• Pixel Pitch: 1.88mm
• Brightness: 800cd/m²
• Ultra Slim Depth
• EMC Class B, BS 476 Part7 Class 1

Specifications:

• Physical Parameter
• Pixel Configuration 3 in 1
• Pixel Pitch (mm) 1.875
• Module Resolution (W x H) 160 × 90
• Module Dimensions (W x H, mm) 300 × 168.75
• Weight per Module (kg) 0.32 (-RK,-CK)/ 0.67 (-CKF)
• No. of Modules per Cabinet (W × H) 2x2 (-RK)/ 1x2 (-CK,-CKF)
• Cabinet Resolution (W × H) 320x180 (-RK)/ 160x180 (-CK, -CKF)
• Cabinet Dimensions (W × H × D, mm) 600x337.5x34 (-RK) /
• 300x337.5x29.7 (-CK) /
• 300x337.5x35.6 (-CKF, Cabinet Mounting Depth)
• Cabinet Surface Area (m²) 0.203 (-RK)/ 0.101 (-CK, -CKF)
• Weight per Square Meter (kg/m²) 26.2 (-RK)/ 39.0 (-CK)/ 30.6 (-CKF)
• Weight per Cabinet (kg / unit) 5.3 (-RK)/ 4.0 (-CK)/
• 3.1 (-CKF, Weight Changes for Different Curves)
• Physical Pixel Density (pixels/m²) 284,444
• Flatness of Cabinet ± 0.1 mm
• Cabinet Material Die-casting Aluminum (-RK)/
• Aluminum Machine (-CK, CKF)
• Service Access Front
• Optical Parameter
• Max. Brightness (After Calibration) 800
• Color Temperature 3,200-9,300 (K)
• Visual Viewing Angle (Horizontal/Vertical) 160 × 160
• Brightness Uniformity 97 %
• Color Uniformity ± 0.003 Cx,Cy
• Contrast Ratio 5,000:1
• Processing Depth (bit) 14 (HDR10, HDR10 Pro)
• Electrical Parameter
• Power Consumption (W/Cabinet, Max.) 150 (-RK)/ 75 (-CK, -CKF)
• Power Consumption (W/Cabinet, Avg.) 50 (-RK)/ 25 (-CK, CKF)
• Power Consumption (W/m², Max.) 740
• Power Supply (V) 100 to 240
• Frame Rate (Hz) 50 / 60
• Refresh Rate (Hz) 3,840
• Operation Conditions
• Lifetime (Hours to Half Brightness) 100,000
• Operating Temperature (°C) -10 °C to +45 °C
• Operating Humidity 0-80% RH
• IP rating Front / Rear IP30 / IP30
• Controller
• Controller CVCA, LCIN006, LCIN008 (4K)
• 90 Degree Corner Cut
• 90 Degree Corner Cut Yes
