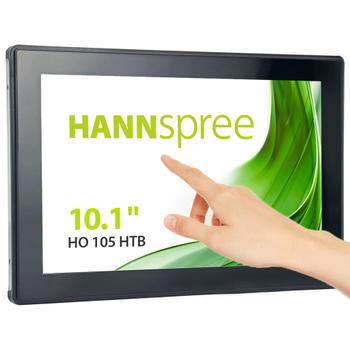

HO 105 HTB
The HANNspree HO105HTB 10.1’’ Open-Frame monitor delivers a high-performance display solution. Its rugged bezel with edge-to-edge glass makes it very suitable for applications like tabletop integration. The HANNspree HO105HTB is an ideal display for integration in kiosk, totem and a perfect solution for interactive digital signage, Instore Retail, Gaming and many other sectors.
Features:
- 1280 x 800 Resolution
- 10-Point Touch P-Cap Technology
- 170° / 170° Wide Viewing Angle
- Dual Input: HDMI + VGA
- IP65 (front) Rating Level
- 12 Volt External Power Supply
- ≥6H Toughened Hard Panel Surface
- TP Module Thickness 2mm
- Touch-Through Glass (available upon request*)
- Sturdy Metal Case
- VESA Mount and Multiple Mounting Options
- Orientation: Landscape, Portrait, Face-Up
Specifications:
| Display Size |
25.65cm / 10.1″ Diagonal |
| Panel Type |
TFT – LED Backlight |
| Aspect Ratio |
16:09 |
| Resolution (H x V) |
1280 x 800 |
| Pixel Pitch |
0.1695 x 0.1695 mm |
| Brightness |
350 cd/m² (Panel) / 300 cd/m² (Monitor) |
| Contrast (Typ.) |
800:1 (Typical) |
| Vesa Mounting |
75mm x 75mm |
| Viewing Angle L/R; U/D |
170° H / 170° V (CR > 10) |
| Response time |
25 msec (typ) |
| Touch Type |
Projected Capacitive Type – 10-Point Touch, Material Glass + Glass (G+G) |
| Display Protection |
Thickness 2mm |
| Display Colors |
16.7M Colors |
| Hardness / Transmittance |
≥6H Toughened hard panel surface / ≥85% |
| IP Rating Level |
IP 65 (Front), Water and Dust Protection * |
| Horizontal Frequency |
30 ~ 55 kHz |
| Vertical Frequency |
56 ~ 60 Hz |
| External Power Adapter |
DC: 12Volt / 3A |
| Input 1 |
VGA (D-Sub) |
| Input 2 |
HDMI |
| Input 3 |
USB Type B (For touch function) |
| Speakers |
NA |
| Power Consumption |
On: 5W; Stand-by: 0,2W; Off: 0,2W |
| Product Dimensions |
260 x 35.8 x 178 mm (W x D x H) |
| Packing Dimensions |
370 x 90 x 237 mm (W x D x H) (TBC) |
| Weight |
1.4 Kg / 2.2 Kg (TBC) |
| Controls / Colour |
Power, Auto, (+), (-), Menu / 9300, 7500, 6500, User Mode |
| Color |
9300, 7500, 6500, User Mode |
| Preset Mode / On Screen Display |
N/A – 9 OSD Languages |
| LED Backlight life |
20.000 hours |
| Orientation |
Landscape, Portrait, Face-Up |
| Accessory |
Power Adaptor; EU Power Cord (1.8m); USB Cable (1.8m); HDMI Cable (2m) |
