MULTIBRACKETS Universal Tilt Wallmount SD max 800x600 63inch-110inch
Tuotekoodi:
7350073731107
Takuu:
MULTIBRACKETS 60 KK
-
M Universal Tilt Wallmount HD MAX 800x600
The Multibrackets M Universal Tilt SD is a versatile wall mount for large display installations. With its smart design the mount can be used for both landscape and portrait installations. With a maxweight capacity of 125kg´s it can handle screens up to 110". With a wide VESA range of 800x600 it can also handle most VESA specifications large screens are using.
The Multibrackets M Universal Mount SD series of tilt, fixed, and pull-out mounts from Multibrackets are engineered to solve tough installation problems such as leveling and stud location. Installerinspired features make installation and maintenance safe and easy. This series of mounts makes it easy to take control of your installation. Universal and with low-profile mounts they are engineeredfor speed of installation and usability. With a variety of products ranging from a single TV to a video wall matrix for digital signage, Multibrackets SD mounts are the perfect solution for manyapplications.
Highlights
- Clean look & easy to install
- Perfect for digital signage, educational and corporate installations.
- To be used in both landscape and portait installations.
- Engineered for speed of installation and usability
- Tilt angle can be adjusted without removing the screen.
- Slim 75mm distance to wall
- Super Duty (SD) 125kg max load
- Anti-theft: Lock and key (optional)

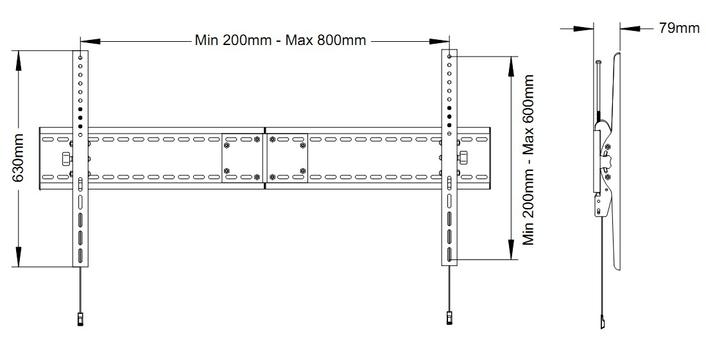

| Specification |
| M Universal Wallmount Tilt SD MAX 800x600 |
| For screen size: | 63-110" |
| Universal & VESA standard: | Max VESA 800x600mm |
| Article No: | 7 350 073 731 107 |
| Colour: | Black |
| Max load: | 125 kg |
| Net weight: | 8.10 kg |
| Gross weight: | 8.30 kg |
| Options: | Anti-theft: Lock and key (optional) |
| Warranty: | 5 years |
| Distance to wall: | (min-max) 75-113mm |
| Backplate measurement: | Landscape: 907mm (W), Portait: 453,7mm (W) |
|
Tuettavien näyttöjen määrä 1 |
Enimmäispaino 125 kg |
Näytön yhteensopivuuden vähimmäiskoko 160 cm (63") |
Näytön yhteensopivuuden enimmäiskoko 2,79 m (110") |
Kiinnitystyyppi Seinä |
Asennusliitännän yhteensopivuus (min.) 200 x 300 mm |
Asennusliitännän yhteensopivuus (maks.) 800 x 600 mm |
VESA-asennusliitännät 200 x 300,200 x 400,200 x 600,400 x 400,400 x 600,600 x 200,600 x 400,600 x 600,600 x 300,800 x 300,800 x 400,800 x 500,800 x 600 |
|
Korkeussäätö |
Kallistuskulma 0 - 10° |
Etäisyys seinästä enintään 11,3 cm |
Etäisyys seinästä vähintään 7,5 cm |
|
Tuotteen väri musta |
Kotelon materiaali Terästä |
Varkauden estotoiminto |
Riippulukko käy |
|
Suunta Maisema/Muotokuva |
Metallipakkauksen paino 4,92 kg |
Muovipakkauksen paino 45 g |
Paper/cardboard packaging weight 3,2 kg |
|
Syvyys (min.) 7,9 cm |
Tuotteen korkeus 630 mm |
Paino 8,1 kg |
|
Pakkauksen leveys 200 mm |
Pakkauksen syvyys 680 mm |
Pakkauksen korkeus 120 mm |
Pakkauksen paino 8,16 kg |
|
Toimituspakkauksen leveys 39 cm |
Toimituspakkauksen pituus 68 cm |
Toimituspakkauksen korkeus 23 cm |
Toimituspakkauksen paino 26,7 kg |
Määrä toimituspakkauksessa 5 kpl |
