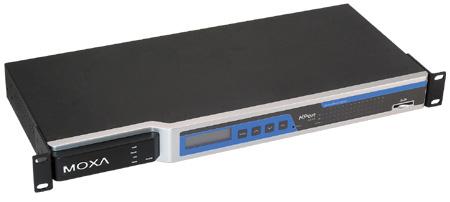

MOXA Serial Server Rs-232
Tuotekoodi:
NPort 6610-32
-
NPort 6600 Series
8, 16, and 32-port RS-232/422/485 rackmount terminal servers
Features and Benefits
Up to 32 ports for high density environments
Any Baudrate supported with high precision
Port buffers for storing serial data when the Ethernet is off-line
SD slot for expanding port buffer memory
Slot for network expansion module
Overview
The NPort® 6600 series of secure device servers is the right choice for applications that use large numbers of serial devices packed into a small space. If you're worried about security, you can rest assured with the NPort® 6600, since it supports DES, 3DES, and AES, the three most common standards for data encryption. Serial devices of any type can be connected to the NPort® 6600, and each serial port on the NPort® can be configured independently for RS-232, RS-422, or RS-485 transmission.
LCD Panel Makes Configuration Easy
The NPort® 6600 has a built-in LCD panel for configuration and selecting operation modes. The panel displays the server name, serial number, and IP address, and any of the device server's configuration parameters, such as IP address, netmask, and gateway address, can be updated easily and quickly.
Adjustable Resistor Values for RS-485 Communication
The NPort® 6600 provides adjustable termination, pull high, andpull low resistors for RS-485 communication. In some criticalenvironments, termination resistors may be needed to prevent thereflection of serial signals, and the pull high and pull low resistors mayneed adjusting to maintain the integrity of the electrical signal. Since no set of resistor values works for every environment, the NPort®6600 allows manual adjustment of the resistor values for each serialport using built-in DIP switches.
| • Ethernet Interface (built-in) |
| No. of Ports |
1 |
| Speed |
10/100 Mbps, auto MDI/MDIX |
| Connector(s) |
8-pin RJ45 |
| Magnetic Isolation Protection |
1.5 KV built-in |
| • Optical Fiber Interface (with network module) |
| Fiber Port(s) |
100BaseFX, SC connector |
| Distance |
Multi-mode: 0 to 2 km, 1310 nm (62.5/125 µm, 500 MHz*km)
Single mode: 0 to 40 km, 1310 nm (9/125 µm, 3.5 PS/(nm*km)) |
| Min. TX Output |
Multi-mode: -20 dBm
Single-mode: 0 to 40 km, -5 dBm |
| Max. TX Output |
Multi-mode: -14 dBm
Single-mode: 0 to 40 km, 0 dBm |
| Sensitivity |
Multi-mode: -34 to -30 dBm
Single-mode: -36 to -32 dBm |
| • Serial Interface |
| Serial Standards |
NPort 6610: RS-232
NPort 6650: RS-232/422/485 |
| Number of Ports |
8, 16, or 32 |
| Connector(s) |
8-pin RJ45 |
| RS-485 Data Direction Control |
ADDC™ (automatic data direction control) |
| Console Port |
Dedicated RS-232 console port on rear panel (8-pin RJ45) |
| ESD Protection |
15 KV ESD protection for all signals |
| • Serial Communication Parameters |
| Data Bits |
5, 6, 7, 8 |
| Stop Bits |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
RTS/CTS, DTR/DSR, XON/XOFF |
| Baudrate |
50 bps to 921.6 Kbps |
| • Serial Signals |
| RS-232 |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 |
Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w |
Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w |
Data+, Data-, GND |
| • Memory Expansion Slot |
| Slot Type |
SD socket |
| • Software |
| Network Protocols |
ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP, HTTP, HTTPS, SMTP, ARP, SSH, SSL, PPPoE, DDNS |
| Security Protocols |
DES, 3DES, AES, SSH, SSL, HTTPS, RADIUS, PAP, CHAP, TACACS+ |
| Driver Support |
Windows Real COM drivers (for Windows 95, 98, ME, NT, 2000, XP, 2003, Vista, XP x64, 2003 x64, Vista x64), Linux Real TTY driver, Fixed TTY drivers (for SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i) |
| Configuration Options |
Web Console, Serial Console, Telnet Console, Windows Search Utility |
| • Physical Characteristics |
| Enclosure |
SECC sheet metal (1 mm), IP30 protection |
| Weight |
NPort 6600-8: 3460 g
NPort 6600-16: 3580 g |
| Dimensions |
Without ears: 440 x 195 x 44 mm (17.32 x 7.68 x 1.73 in)
With ears: 480 x 195 x 44 mm (18.9 x 7.68 x 1.73 in) |
| • Environmental Limits |
| Operating Temperature |
0 to 55°C (32 to 131°F) |
| Operating Humidity |
5 to 95% RH |
| Storage Temperature |
-20 to 70°C (-4 to 158°F) |
| Surge Protection |
15 KV ESD protection embedded |
| • Power Requirements |
| Input Voltage |
AC Models: 100 to 240 VAC
DC Models: ±48 VDC (20 to 72 VDC, -20 to -72 VDC) |
| Power Consumption |
AC Models: 285 mA @ 100 VAC, 190 mA @ 240 VAC
DC Models: 293 mA @ 48 VDC |
| Power Line Protection |
1 KV burst (EN61000-4-4: EFT/B), 0.5 KV surge (EN61000-4-5) |
| • Regulatory Approvals |
| Safety |
UL (UL60950-1), TÜV (EN60950-1) |
| EMC |
CE (EN55022 Class A, EN55024), FCC Part 15 Subpart B Class A |
| EN61000-4-2 (ESD) |
4 KV contact |
| EN61000-4-4 (EFT) |
1 KV power |
| EN61000-4-5 (Surge) |
2 KV power |
| • Reliability |
| Alert Tools |
Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger |
Built-in WDT (watchdog timer) |
| • Warranty |
| Warranty Period |
5 years |
| |
Model No. |
Description |
|
|
|
|
|
NPort 6610-8 |
8-port RS-232 to Ethernet Secure Device Server, 100-240 VAC input |
|
|
|
|
|
NPort 6610-8-48V |
8-port RS-232 to Ethernet Secure Device Server, ±48 VDC input |
|
|
|
|
|
NPort 6610-16 |
16-port RS-232 to Ethernet Secure Device Server, 100-240 VAC input |
|
|
|
|
|
NPort 6610-16-48V |
16-port RS-232 to Ethernet Secure Device Server, ±48 VDC input |
|
|
|
|
|
NPort 6610-32 |
32-port RS-232 to Ethernet Secure Device Server, 100-240 VAC input |
|
|
|
|
|
NPort 6610-32-48V |
32-port RS-232 to Ethernet Secure Device Server, ±48 VDC input |
|
|
|
|
|
NPort 6650-8 |
8-port RS-232/422/485 to Ethernet Secure Terminal Server, 100-240 VAC input |
|
|
|
|
|
NPort 6650-8-48V |
8-port RS-232/422/485 to Ethernet Secure Terminal Server, ±48 VDC input |
|
|
|
|
|
NPort 6650-16 |
16-port RS-232/422/485 to Ethernet Secure Terminal Server, 100-240 VAC input |
|
|
|
|
|
NPort 6650-16-48V |
16-port RS-232/422/485 to Ethernet Secure Terminal Server, ±48 VDC input |
|
|
|
|
|
NPort 6650-32 |
32-port RS-232/422/485 to Ethernet Secure Terminal Server, 100-240 VAC input |
|
|
|
|
|
NPort 6650-32-48V |
32-port RS-232/422/485 to Ethernet Secure Terminal Server, ±48 VDC input |
|
|
|
|
|
Sarjaporttien määrä 32 |
Näyttö LCD |
Sarjaliitännän tyyppi RS-232 |
Eristys 1,5 kV |
Ylijännitesuojaus 0,5 kV |
Ethernet LAN -datanopeudet 10,100 Mbit/s |
|
Ethernet LAN (RJ-45) -portit 1 |
|
Tulojännite 100 - 240 V |
|
Hallintaprotokolla SNMP V1/V2c/V3 |
|
Tuetut verkkoprotokollat ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, HTTP, SMTP, ARP, PPPoE, DDNS |
|
Tietoturva-algoritmit 3DES,802.1x RADIUS,DES,HTTPS,SSH,SSL/TLS |
|
Paino 3,6 kg |
|
Käyttölämpötila (T-T) 0 - 55 °C |
Varastointilämpötila -20 - 70 °C |
Käytön suhteellinen kosteus (H-H) 5 - 95% |
|
Sertifiointi CE, FCC, UL, CUL, TUV |
Turvallisuus UL (UL60950-1), TÜV (EN60950-1) |
|
Yhdistettävyyden ledit |
