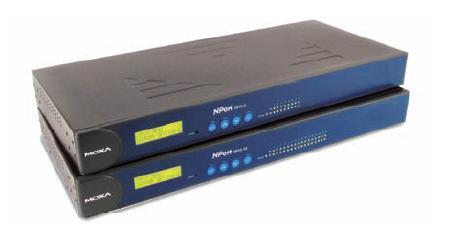

MOXA NPORT 5650-8

Name: MOXA - NPORT 5650-8
Brand: MOXA
SKU: 4667920
Availability: PreOrder

Tilaustuote

Ilmoita kun saatavilla

Tuotekoodi: 41900

Tuote:

Monimediamuunnin

NPort 5650 Rackmount Series

8 and 16-port RS-232/422/485 serial device servers

8 or 16 serial ports supporting RS-232/422/485
Standard 19-inch rackmount size
10/100M auto-sensing Ethernet
Built-in 15 KV ESD protection for all serial signals
Easy IP address configuration with LCD panel (Not include wide temperature models)
Choice of configuration methods: Web console, Telnet console, and Windows utility
Versatile socket operation modes, including TCP Server, TCP Client, UDP, and Real COM
SNMP MIB-II for network management

With the NPort® 5600 rackmount series, you not only protect your current hardware investment, but also allow for future network expansion by centralizing the management of your serial devices and distributing management hosts over the network.

• Ethernet Interface
Number of Ports	1
Speed	10/100 Mbps, auto MDI/MDIX
Connector	8-pin RJ45
Magnetic Isolation Protection	1.5 KV built-in
• Optical Fiber Interface

• Serial Interface
Number of Ports	8 or 16
Serial Standards	NPort 5610: RS-232 NPort 5630: RS-422/485 NPort 5650: RS-232/422/485
Connector	RJ45 (8 pins)
Serial Line Protection	15 KV ESD protection for all signals
RS-485 Data Direction Control	ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485	1 KΩ, 150 KΩ
• Serial Communication Parameters
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	DSR/DTR and RTS/CTS (RS-232 only), XON/XOFF
Baudrate	50 bps to 921.6 Kbps
• Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
• Software
Network Protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP, ARP, PPP, SLIP, RTelnet, RFC2217
Configuration Options	Web Console, Telnet Console, Windows Utility
Windows Real COM Drivers	Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7 x86/x64, Embedded CE 5.0/6.0, XP Embedded
Fixed TTY Drivers	SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i
Linux Real TTY Drivers	Linux kernel 2.4.x, 2.6.x
• Mini Screen with Push Buttons
LCD Panel	Liquid Crystal Display on the case
Push Buttons	Four push buttons for convenient on-site configuration
• Physical Characteristics
Housing	Metal, IP30 protection
Weight	NPort 5610-8: 3340 g NPort 5610-8-48V: 3160 g NPort 5630-8, 5650-8-S-SC, 5650-8-M-SC: 3380 g NPort 5650-8: 3360 g NPort 5610-16: 3420 g NPort 5610-16-48V: 3260 g NPort 5630-16: 3400 g NPort 5650-16: 3460 g NPort 5650-16-S-SC, 5650-16-M-SC: 3440 g
Dimensions	Without ears: 440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in) With ears: 480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in)
• Environmental Limits
Operating Temperature	Standare Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature	-40 to 75°C (-40 to 167°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
• Power Requirements
Input Voltage	NPort 5610/5630/5650: 100 to 240 VAC, 47 to 63 hz NPort 5610-48V: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)
Power Consumption	NPort 5610-8/16: 141 mA @ 100 VAC, 93 mA @ 240 VAC NPort 5630-8/16: 152 mA @ 100 VAC, 98 mA @ 240 VAC NPort 5610-8/16-48V: 135 mA @ 48 VDC NPort 5650-8/16: 158 mA @ 100 VAC, 102 mA @ 240 VAC NPort 5650-8/16-S-SC: 164 mA @ 100 VAC, 110 mA @ 240 VAC NPort 5650-8/16-M-SC: 174 mA @ 100 VAC, 113 mA @ 240 VAC
• Standards and Certifications
Safety	UL 60950-1, EN 60950-1
EMC	CE, FCC
EMI	EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS	EN 55024 (NPort 5610 only: IEC 61000-4-12)
Medical	EN 60601-1-2 Class B, EN 55011
• Reliability
Automatic Reboot Trigger	Built-in WDT (watchdog timer)
MTBF (mean time between failures)	NPort 5610-8: 97,294 hrs NPort 5610-16: 94,928 hrs NPort 5610-8-48V: 96,758 NPort 5610-16-48V: 94,417 hrs NPort 5630-8: 118,405 hrs NPort 5630-16: 91,483 hrs NPort 5650-8: 117,584 hrs NPort 5650-16: 104,767 hrs NPort 5650-S-SC-8: 116,914 hrs NPort 5650-S-SC-16: 87,528 hrs NPort 5650-M-SC-8: 116,914 hrs NPort 5650-M-SC-16: 87,528 hrs
• Warranty
Warranty Period	5 years

	Model No.	Description
	NPort 5650-8	8-port RS-232/422/485 rackmount device server with RJ45 connectors and 100-240 VAC power input
	NPort 5650-8-M-SC	8-port RS-232/422/485 rackmount device server with RJ45 connectors and 100BaseF(X) multi-mode fiber (SC connector)
	NPort 5650-8-S-SC	8-port RS-232/422/485 rackmount device server with RJ45 connectors and 100BaseF(X) single-mode fiber (SC connector)
	NPort 5650-8-T	8-port RS-232/422/485 rackmount device server with RJ45 connectors and 100-240 VAC power input, -40 to 75°C operating temperature
	NPort 5650-16	16-port RS-232/422/485 rackmount device server with RJ45 connectors and 100-240 VAC power input
	NPort 5650-16-M-SC	16-port RS-232/422/485 rackmount device server with RJ45 connectors and 100BaseF(X) multi-mode fiber (SC connector)
	NPort 5650-16-S-SC	16-port RS-232/422/485 rackmount device server with RJ45 connectors and 100BaseF(X) single-mode fiber (SC connector)
	NPort 5650-16-T	16-port RS-232/422/485 rackmount device server with RJ45 connectors and 100-240 VAC power input, -40 to 75°C operating temperature
