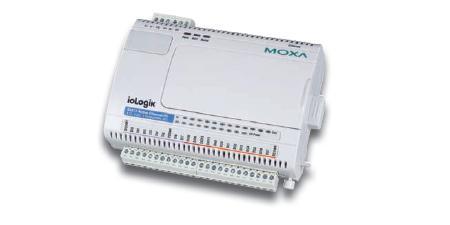

MOXA Iologik Ethernet I/O Server. 24Vdc Factory Sealed
Tuotekoodi:
ioLogik E2212
-
ioLogik E2212
Active Ethernet I/O with 8 digital inputs, 8 digital outputs, and 4 configurable DIO
Features and Benefits
- Selectable digital I/O combination by software
- Accepts PNP or NPN sensors
- Instant event messaging by TCP/UDP/e-mail/SNMP trap
- Easy-to-use Click&Go™ Logic for local output control
- PC-based configuration utility and web console
- I/O control over Modbus/TCP and SNMP protocol
- Windows/WinCE VB/VC and Linux C API
- Peer-to-Peer I/O without controller
Introduction
Flexible digital input/output configuration
The ioLogik E2212 provides system integrators with the flexibility to handle various field demands with channels that can be configured by software for input or output operation. You can configure the I/O channels to suit your needs, for combinations such as 12 inputs/8 outputs, 8 inputs/12 outputs, or 10 inputs/10 outputs.
Single Ethernet DIO that Accepts 3 Types of Sensors
Unlike traditional Ethernet I/O products, the ioLogik E2212 can connect to dry contact, PNP, and NPN sensors at the same time. You can choose the sensor type based on your wiring approach.
| • LAN: |
| Ethernet |
10/100Mbps, RJ45 |
| Protection |
1.5KV magnetic isolation |
| Protocols |
Modbus/TCP, TCP/IP, UDP, DHCP, Bootp, SNMP(MIB for I/O and Network), HTTP, SNTP |
| • Serial: |
| Interface |
RS-485-2w: Data+, Data-, GND |
| Serial Line Protection |
15KV ESD for all signals |
| • Serial Communication Parameters: |
| Data Bits |
8 |
| Stop Bits |
1 |
| Parity |
None |
| Flow Control |
None |
| Protocols |
Modbus/RTU |
| Speed |
1200 to 115200 bps |
| • Digital Input: |
| Channels |
8 fixed points |
| Sensor Type |
2 6-point groups for NPN/PNP type |
| I/O Mode |
DI or Event Counter (up to 900Hz) |
| Dry Contact |
Logic 0: short to GND
Logic 1: open |
| Wet Contact |
Logic 0: 0 to 3 VDC
Logic 1: 10 to 30 VDC |
| Common Type |
6 points per COM |
| Isolation |
3K VDC or 2K Vrms |
| Low Speed Counter/Frequency |
900 Hz, power off storage |
| Over-voltage Protection |
36 VDC |
| Poweroff Counter Memory |
48 Bytes |
| • Digital Output: |
| Channels |
8 fixed points sink, 45 VDC, 200 mA |
| Magnetic Isolation |
2K Vrms or 3K VDC |
| Pulse Wave Width |
10 ms/100 Hz |
| Over-voltage Protection |
45 VDC |
| Over-current Limit |
400 mA (typical) |
| Over-temperature Shutdown |
175°C (min.) |
| • DI/DO Configurable Channels: |
| Channels |
4 |
| I/O Mode |
DI or Event Counter (Up to 900 Hz)
DO or Pulse Output (Up to 100 Hz) |
| • Physical Characteristics: |
| Wiring |
I/O cable max. 14AWG |
| • Environmental Limits: |
| Operating Temperature |
-10 to 60°C (14 to 140°F) |
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| • Power Requirements: |
| Power Input |
24 VDC nominal, 12 to 48 VDC |
| DO Power |
24 VDC nominal, up to 30 VDC |
| • Agency Approvals: |
| EMI |
FCC Part 15, CISPR (EN55022) class A |
| EMS |
IEC 61000-4, IEC 61000-6 |
| Safety |
UL508 |
| Shock |
IEC 60068-2-27 |
| Freefall |
IEC 60068-2-32 |
| Vibration |
IEC 60068-2-6 |
| • Warranty: |
| Warranty Period |
2 years |
| |
Model No. |
Descritpion |
|
|
|
|
|
LDP1602 |
LCD module with 16 x 2 text display and 5 buttons |
|
|
|
|
|
ioLogik E2212 |
Active Ethernet I/O, with 8 digital inputs, 8 digital outputs, and 4 configurable DIO |
|
|
|
|
|
Kanavien määrä 20 kanavaa |
Eristys 3 kV |
|
Kanavan tyyppi Sink channel |
Signaalin suunta Sisääntulo/ulostulo |
Ulostulon virta-alue 0 - 0,2 A |
Kaapelityyppi AWG |
Staattisen sähkön purkauksen (ESD) -suoja 15 kV |
Moduulin tyyppi Digitaalinen |
Ethernet LAN (RJ-45) -portit 1 |
Sarjaliitännän tyyppi RS-485 |
Mitat (LxSxK) 115 x 79 x 45,63 mm |
Virrankulutus 282 mA |
Suhteellinen kosteus 5 - 95% |
Tuetut verkkoprotokollat Modbus/TCP, TCP/IP, UDP, DHCP, Bootp, SNMP, HTTP, CGI, SNTP |
