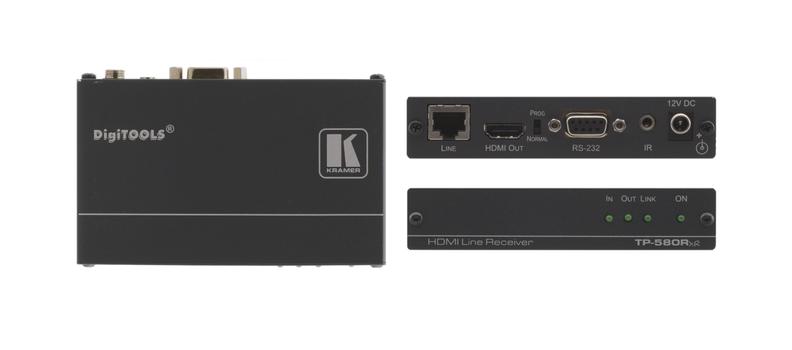

KRAMER TP-580RXR receiver for HDMI bidirectional RS-232 and IR via HDBaseT Twisted Pair

The TP−580RXR is an extended range, HDBaseT twisted pair receiver for HDMI, bidirectional RS−232 and IR signals. The TP−580RXR receives an HDBaseT twisted pair signal from the TP−580TXR and converts it back into HDMI, RS−232 and IR signals.

- Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliance.
- HDBaseT™ Technology.
- HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS−HD, CEC.
- 3D Pass-Through.
- EDID PassThru - Passes EDID signals between the source and display.
- 2K & 4K Support.
- Bidirectional RS-232 & IR Interface. - Commands and data can flow in both directions via the RS−232 interface, allowing status requests and remote control of the destination unit.
- System Range - Up to 130m (430ft) normal mode; up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC−HDKat6a cables
- Cable - For optimum range and performance using HDBaseT™, use Kramer's BC−HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non−Kramer CAT 6 cable may not reach these ranges.
- Indicators - Status LEDs for input, output, link and power.
- Compact DigiTOOLS® - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T universal rack adapter.
