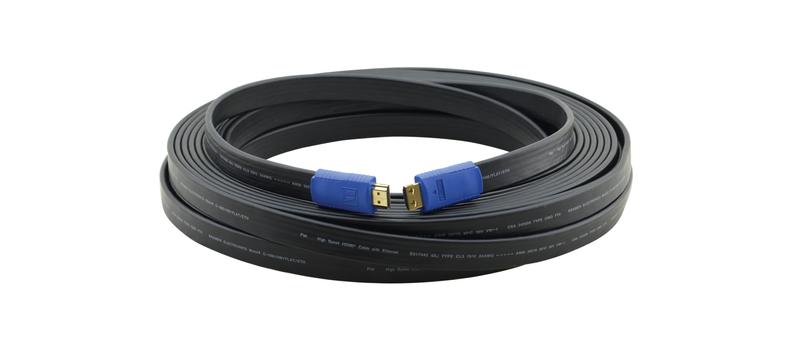

KRAMER C-HM/HM/FLAT/ETH Series HDMI med Ethernet-kabel HDMI 7.6m
SKU:
97-01014025
Connector 1:
HDMI Type A (Standard)
Connector 2:
HDMI Type A (Standard)
Warranty:
KRAMER ELINIKÄINEN
-
Kramer HDMI Cable - 7,6 m Flat HS
C-HM/HM/FLAT/ETH-25
HDMI 10.2Gbps 26 AWG Ethernet Black
Kramer’s C−HM/HM/FLAT/ETH high−speed flat HDMI cable with Ethernet is designed for invisible and long distance installations. It routes through the wall, under the carpet, around corners and behind the entertainment system with ease. The flat design of the cable renders it unobtrusive.
Features:
- Quality Construction - Constructed from flexible flat cable structured to have less crosstalk and interference than with traditional round HDMI cables.
- High-Quality Connectors - Gold−plated connectors resist corrosion, cut down on impedance and offer the best possible connectivity.
- High Resolution - The cables are capable of carrying extremely high bandwidth signals, including 1080p over longer runs than conventional designs, without signal degradation.
- Varied Selection of Lengths - Available in versions of 0.9 to 22.9m (3, 6, 10, 15, 25, 35, 50 and 75ft).
Specifications:- Type: High−speed HDMI cables.
- Cables Support The Following Resolutions:480i, 480p, 720p, 1080i, 1080p.
- Conductor AWG 3−25ft cables use 26 AWG (7/0.16) 35 & 50ft use 24 AWG (7/0.2).
- Shield: Dual overall shield against EMI/RFI interference (a) Al− Mylar (b) Tinned copper.
- Cable OD (mm): 3−25ft: 7.6 mm 35 & 50ft: 8.3mm.
- Molded Connectors: Yes.
- Gold-Plated Connectors Yes.
- HDCP Compliant Yes.
- Flame Test CL2.
|
Cable length 7.6 m |
Connector 1 HDMI Type A (Standard) |
Connector 2 HDMI Type A (Standard) |
Connector 1 gender Male |
Connector 2 gender Male |
Connector 1 form factor Straight |
Connector 2 form factor Straight |
Connector contacts plating Gold |
Pull-resistant connector(s) |
Pull resistance technology K-Lock |
Colour of product Black |
Magnetically shielded |
AWG wire size 26 |
Maximum resolution 1920 x 1080 pixels |
Supported video modes 1080i,1080p,480i,480p,720p |
HDMI Ethernet channel |
HDCP |
Cable shielding Aluminum mylar foil |
Certification CL2 |
