CISCO o Webex Room Kit - Video conferencing kit - with Touch10 (CS-KIT-K9)

CISCO o Webex Room Kit - Video conferencing kit - with Touch10

SKU: CS-KIT-K9
TYPE:
Conference System

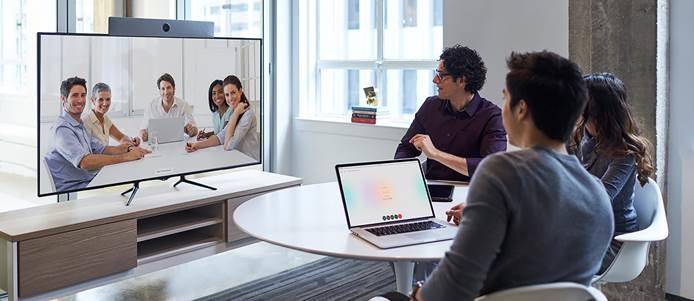

Cisco Spark Room Kit is a powerful collaboration solution that integrates with flat panel displays to bring more intelligence and usability to your small to medium-sized meeting rooms – whether registered on the premises or through the cloud. Cisco Spark Room Kit overview Cisco Spark™ Room Kit delivers the unmatched video and audio experience customers have come to expect from Cisco. In addition, new capabilities enable even smarter meetings, smarter presentation capabilities, and smarter room and device integrations – further removing the barriers to usage and deployment of video in small to medium-sized rooms. The Room Kit – which includes camera, codec, speakers, and microphones integrated in a single device – is ideal for rooms that seat up to seven people. It offers sophisticated camera technologies that bring speaker-tracking capabilities to smaller rooms. The product is rich in functionality and experience but is priced and designed to be easily scalable to all of your small conference rooms and spaces – whether registered on the premises or to Cisco Spark through the Cisco® Collaboration Cloud.

Technical details
Product type
Group video conferencing system
Product colour
Black
Video
Megapixel
15.1 MP
HD type
Full HD
Supported video modes
720i,720p,1080i,1080p
Maximum frame rate
60 fps
Aspect ratio
16:9
Video formats supported
H.264,H.265
Audio
Built-in speaker(s)
Yes
Frequency range
70 - 20000 Hz
Voice codecs
G.711,G.722,G.722.1,G.729,OPUS
Noise reduction
Yes
Automatic gain control
Yes
RMS rated power
24 W
Ports & interfaces
HDMI ports quantity
3
USB 2.0 ports quantity
1
Headphone outputs
1
Line-in
Yes
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Wi-Fi
Yes
Wi-Fi standards
802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Supported network protocols
H.323/SIP
Data link protocols
IPv4/IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ
Camera
Effective sensor resolution
15.1 MP
Sensor type
CMOS
Image sensor size
1/1.7"
Optical zoom (normal mode)
3x
Horizontal field of view
83°
Focus adjustment
Auto
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
10 - 90%
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
DC input voltage
12 V
Power consumption (typical)
20 W
Power consumption (max)
70 W
Weight & dimensions
Width
700 mm
Depth
88 mm
Height
106 mm
Weight
3.2 kg
Packaging content
Speaker included
Yes
Camera included
Yes
Microphone included
Yes
