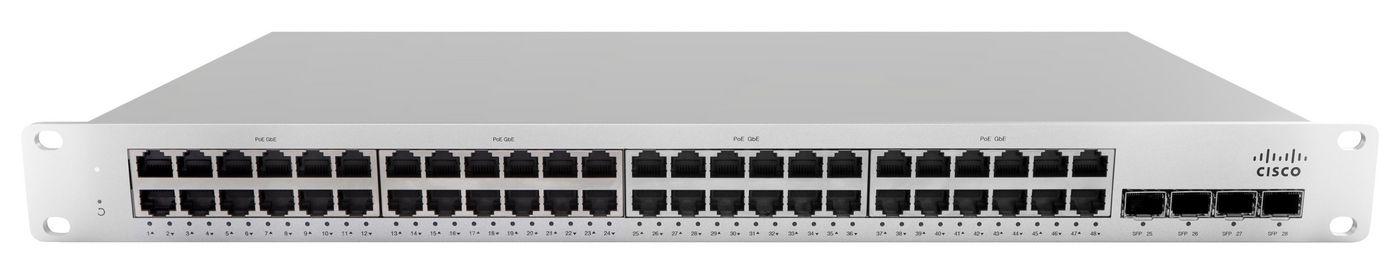

CISCO MS210-48LP 1G L2 Cld-Mngd 48x GigE 370W (MS210-48LP-HW)

CISCO MS210-48LP 1G L2 Cld-Mngd 48x GigE 370W


Keskusvarasto Varastossa (Toimitusaika 1-3 päivää)
Tuotekoodi: MS210-48LP-HW
Tuote:
Hallittu kytkin
Portit:
48
Nopeus:
1Gbps

Cisco Meraki MS210 switches provide Layer 2 access switching for branch and small campus locations. The MS210 includes 4 x 1G SFP uplinks and physically stacks with the MS225 to gain access to its 10G uplink. This family also supports an optional, rack-mountable PSU (Cisco RPS-2300) for power redundancy requirements
Cisco Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.
The Meraki MS is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch.
Meraki’s centralized management gives administrators deep visibility into the network and how it’s used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.

Hallintaominaisuudet
Kytkin tyyppi
Hallittu
Kytkinkerros
L3
Quality of Service -tuki
Yes
Verkkosivupohjainen hallinta
Yes
Järjestelmän tapahtumien loki
Yes
Liitettävyys
Basic kytkentä RJ-45 Ethernet-porttien määrä
48
Peruskytkentä RJ-45 Ethernet-porttien tyyppi
Gigabit Ethernet (10/100/1000)
SFP -moduulipaikkojen määrä
4
Console-portti
RJ-45
Verkko
Verkkostandardit
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1w,IEEE 802.3ad
10G-tuki
No
Ethernet kaapelointiteknologia
10BASE-T,100BASE-TX,1000BASE-T
Porttien peilaus
Yes
IP-reititys
Yes
Virranhallinnan tuki
Yes
Linkkien yhdistäminen
Yes
Broadcast Storm Control
Yes
Auto MDI/MDI-X
Yes
STP-Protokolla
Yes
Auto-negotiaatio
Yes
VLAN-tuki
Yes
VLAN:ien määrä
4094
Datasiirto
MAC-osoitetaulukko
32000 entries
Kytkentäkapasiteetti
176 Gbit/s
Suoritusteho
77,38 Mpps
Jonojen määrä
8
Jumbo Frames -tuki
Yes
Jumbo frames
9578
Suojaus
DHCP-ominaisuudet
DHCP snooping,DHCP relay
Pääsynhallintalista
Yes
IGMP snooping
Yes
Tietoturva-algoritmit
802.1x RADIUS,SNMP
BPDU suodatus/suojaus
Yes
Root protection
Yes
Salasanasuojaus
Yes
Monilähetysominaisuudet
Multicast-tuki
Yes
Protokollat
Tuetut verkkoprotokollat
LLDP, CDP
Suunnittelu
Telineasennus
Yes
Pinottava
Yes
Kotelo
1U
Tuotteen väri
Hopea
Sertifiointi
CSA-US, FCC, IC, CE, RCM, RoHS
Suorituskyky
Physical stacking (kpl)
8
Päivitettävä Firmware
Yes
Keskimääräinen vikaantumisaika
381015 h
Virranhallinta
Vikasietoisen virtalähteen tuki (RPS)
Yes
AC-syöttöjännite
100 - 240 V
AC-syöttötaajuus
47/63 Hz
Virrankulutus
15 W
Tehonkulutus (maks.)
882 W
Power over Ethernet (PoE)
Power over Ethernet -tuki
Yes
Power over Ethernet plus (PoE +) -porttien määrä
48
Power over Ethernet (PoE) arvioitu kokonaismäärä
370 W
Ympäristöolosuhteet
Käyttölämpötila (T-T)
0 - 40 °C
Käytön suhteellinen kosteus (H-H)
5 - 95%
Paino ja mitat
Tuotteen leveys
484,6 mm
Tuotteen syvyys
340 mm
Tuotteen korkeus
43,8 mm
Paino
4,37 kg
Pakkaustiedot
Sisältää ruuvit
Yes
