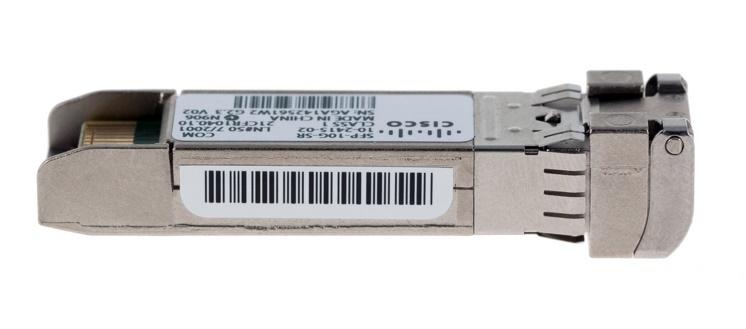

CISCO 10GBASE-SR SFP MODULE . IN
Tuotekoodi:
SFP-10G-SR=
Tuote:
Transceiver / GBIC / SFP
-
Cisco 10GBASE SFP+ Modules.
|
Description |
Product Number |
|
SFP+ Modules |
|
Cisco 10GBASE-SR SFP+ Module for MMF |
SFP-10G-SR |
|
Cisco 10GBASE-LRM SFP+ Module for MMF and SMF |
SFP-10G-LRM |
|
Cisco 10GBASE-LR SFP+ Module for SMF |
SFP-10G-LR |
|
Cisco 10GBASE-ER SFP+ Module for SMF |
SFP-10G-ER |
|
SFP+ Copper Modules |
|
10GBASE-CU SFP+ Cable 1 Meter, passive |
SFP-H10GB-CU1M |
|
10GBASE-CU SFP+ Cable 3 Meter, passive |
SFP-H10GB-CU3M |
|
10GBASE-CU SFP+ Cable 5 Meter, passive |
SFP-H10GB-CU5M |
|
10GBASE-CU SFP+ Cable 7 Meter, active |
SFP-H10GB-ACU7M |
|
10GBASE-CU SFP+ Cable 10 Meter, active |
SFP-H10GB-ACU10M |
The Cisco® 10GBASE SFP+ modules (Figure 1) offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.
Features
- Smallest 10G form factor
- Supports 10GBASE Ethernet
- Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a Cisco switch
- Provides flexibility of interface choice
- Supports "pay-as-you-populate" model
- Supports digital optical monitoring capability
- Supports the Cisco quality identification (ID) feature that enables a Cisco switch to identify whether the module is certified and tested by Cisco
- Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link
Specifications
|
Cisco SFP+ |
Wavelength (nm) |
Cable Type |
Core Size (microns) |
Modal Bandwidth (MHz*km)*** |
Cable Distance* |
|
Cisco SFP-10G-SR |
850 |
MMF |
62.5
62.5
50.0
50.0
50.0 |
160
200
400
500
2000 |
26m
33m
66m
82m
300m |
|
Cisco SFP-10G-LRM |
1310 |
MMF
SMF |
62.5
50
50
G.652 |
500
400
500
- |
220m
100m
220m
300m |
|
Cisco FET-10G |
850 |
MMF |
50
50 |
500
2000 |
25m
100m |
|
Cisco SFP-10G-LR |
1310 |
SMF |
G.652 |
- |
10km |
|
Cisco SFP-10G-ER |
1550 |
SMF |
G.652 |
- |
40km** |
|
Cisco SFP-H10GB-CU1M |
- |
Twinax cable, passive, 30AWG cable assembly |
- |
- |
1m |
|
Cisco SFP-H10GB-CU3M |
- |
Twinax cable, passive, 30AWG cable assembly |
- |
- |
3m |
|
Cisco SFP-H10GB-CU5M |
- |
Twinax cable, passive, 24AWG cable assembly |
- |
- |
5m |
|
Cisco SFP-H10GB-ACU7M |
- |
Twinax cable, active, 30 AWG cable assembly |
- |
- |
7m |
|
Cisco SFP-H10GB-ACU10M |
- |
Twinax cable, active, 28 AWG cable assembly |
- |
- |
10m |
Optical Transmit and Receive Specifications
|
Product |
Type |
Transmit Power (dBm)* |
Receive Power (dBm)* |
Transmit and Receive Wavelength (nm) |
|
Maximum |
Minimum |
Maximum |
Minimum |
|
Cisco SFP-10G-SR |
10GBASE-SR 850 nm MMF |
-1.2** |
-7.3 |
-1.0 |
-9.9 |
840 to 860 |
|
|
Cisco SFP-10G-LRM |
10GBASE-LRM 1310 nm MMF and SMF |
0.5 |
-6.5 |
0.5 |
-8.4 (in average) and -6.4 (in OMA)*** |
1260 to 1355 |
|
|
Cisco FET-10G |
FET-10G 850nm MMF |
-1.3 |
-8 |
-1 |
-9.9 |
840 to 860 |
|
|
Cisco SFP-10G-LR |
10GBASE-LR 1310 nm SMF |
0.5 |
-8.2 |
0.5 |
-14.4 |
1260 to 1355 |
|
|
Cisco SFP-10G-ER |
10GBASE-ER 1550 nm SMF |
4.0 |
-4.7 |
-1 |
-15.8 |
1530 to 1565 |
|
SFP+ Modules Maximum Power Consumption
|
Product |
Power Consumption (W) |
|
Cisco SFP-10G-SR |
1 |
|
Cisco SFP-10G-LRM |
1 |
|
Cisco FET-10G |
1 |
|
Cisco SFP-10G-LR |
1 |
|
Cisco SFP-10G-ER |
1.5 |
|
Cisco SFP-H10GB-CU1M |
1 |
|
Cisco SFP-H10GB-CU3M |
1 |
|
Cisco SFP-H10GB-CU5M |
1 |
|
Cisco SFP-H10GB-ACU7M |
1 |
|
Cisco SFP-H10GB-ACU10M |
1 |
|
Yhteysteknologia Langallinen |
|
Suurin siirtoetäisyys 300 m |
Aallonpituus 850 nm |
|
Hot-swap |
|
Tuotteen leveys 13,4 mm |
Tuotteen syvyys 56,5 mm |
Tuotteen korkeus 8,5 mm |
Paino 75 g |
|
Käyttölämpötila (T-T) 0 - 70 °C |
Varastointilämpötila -40 - 85 °C |
|
Käyttöliittymä SFP |
Liitäntä LC/PC |
Kuitutyyppi MMF |
