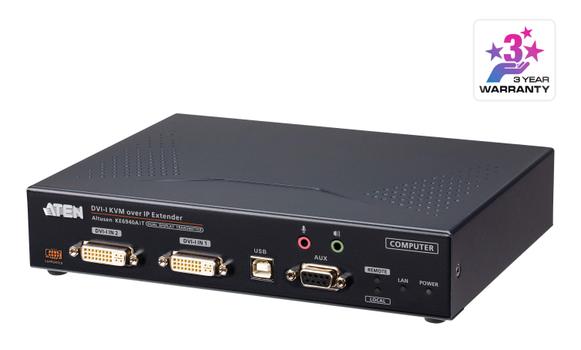

ATEN FHD Dual DVI-I KVM over IP Transmitter with Internet Access (KE6940AIT-AX-G)
ATEN FHD Dual DVI-I KVM over IP Transmitter with Internet Access (KE6940AIT-AX-G)
ATEN FHD Dual DVI-I KVM over IP Transmitter with Internet Access (KE6940AIT-AX-G)

ATEN FHD Dual DVI-I KVM over IP Transmitter with Internet Access

SKU: KE6940AIT-AX-G
Type:
Extender
Hosts:
1

The KE6940AiT are high performance IP-based transmitters that, when used with receivers (e.g. KE6940AR), provide console access from a separate location. The setup allows extended access of computer systems remotely via USB consoles (USB keyboard, USB mouse, DVI monitor) over intranet and internet, enabling users to place the computer system in secure and temperature controlled environments, which maybe isolated from users' workstation.
1x KE6940AiT DVI-I Dual Display KVM over IP Transmitter with Internet Access
1x 0AD8-8012-33MG Power Adapter
1x LIN2-418K-E12G Power Cord
1x LIN5-35W1-W11G KVM Cable (DVI-D, USB, Audio; 1.8m/6ft)
1x LIN5-26W1-W11G DVI-D Cable 1.8 m
1x Foot Pad Set (4 pcs.)
1x KC06-0040-200G Mounting Kit
1x User Instructions

Features
Type
Transmitter
Connectivity technology
Wired
Maximum digital resolution
1920 x 1200 pixels
Product colour
Black
Material
Metal
LED indicators
Link, Power
Transmitter
Transmitter video port type
DVI-I
Transmitter local video port
Yes
Transmitter local video port type
DVI-I
Number of displays supported
2
Transmitter local keyboard/mouse port type
USB
RJ-45 ports quantity (transmitter)
1
Ports & interfaces
USB port type
USB Type-B
USB 2.0 ports quantity
3
RJ-45 ports quantity
2
PC Audio in
Yes
Power
AC adapter output voltage
12 V
Power consumption (transmitter) (max)
18.36 W
Weight & dimensions
Transmitter width
16.3 cm
Transmitter depth
21.5 cm
Transmitter height
4.18 cm
Transmitter weight
1.18 kg
Packaging data
Package width
207 mm
Package depth
414 mm
Package height
117 mm
Package weight
2.55 kg
Packaging content
AC adapter included
Yes
Cables included
DVI
Manual
Yes
Mounting bracket(s) included
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 95%
Other features
Compliance certificates
RoHS
Technical details
Weight
2 kg
Logistics data
Master (outer) case net weight
6 kg
Harmonized System (HS) code
84733080
Master (outer) case width
370 mm
Master (outer) case length
427 mm
Master (outer) case height
232 mm
Master (outer) case gross weight
8.38 kg
Products per master (outer) case
3 pc(s)
ACCESSORIES AND PERIPHERALS / COMPUTER ACC.
COMMUNICATION / KVM/DATASWITCH
COMMUNICATION / NETWORK ACC.
Please note that the product image is for illustration purposes only and the actual product may differ in appearance from the product image (e.g. computers might not include a display, even if there is one in the product image). If you have any questions, please contact us before making an order.

Technical information is provided by a third party. We do not guarantee or assume responsibility for the accuracy or reliability of the information.
