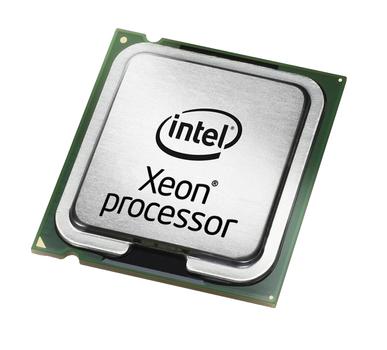

INTEL Xeon E5-2698V4 processor 2.2

Xeon® Processor E5-2698 v4

50M Cache, 2.20 GHz

Specifications:

Essentials

• Product Collection : Intel® Xeon® Processor E5 v4 Family
• Code Name: Products formerly Broadwell
• Vertical Segment: Server
• Processor Number : E5-2698V4
• Lithography : 14 nm

CPU Specifications

• Total Cores : 20
• Total Threads : 40
• Max Turbo Frequency : 3.60 GHz
• Intel® Turbo Boost Technology 2.0 Frequency : 3.60 GHz
• Processor Base Frequency : 2.20 GHz
• Cache : 50 MB Intel® Smart Cache
• Bus Speed : 9.6 GT/s
• # of QPI Links : 2
• TDP : 135 W

Memory Specifications

• Max Memory Size (dependent on memory type) : 1.5 TB
• Memory Types : DDR4 1600/1866/2133/2400
• Max # of Memory Channels : 4
• Max Memory Bandwidth : 76.8 GB/s
• Physical Address Extensions : 46-bit
• ECC Memory Supported : Yes

Expansion Options

• Scalability: 2S
• PCI Express Revision : 3.0
• PCI Express Configurations : x4, x8, x16
• Max # of PCI Express Lanes : 40

Package Specifications

• Sockets Supported : FCLGA2011-3
• Max CPU Configuration: 2
• TCASE : 90°C
• Package Size: 45mm x 52.5mm

Advanced Technologies

• Intel® Turbo Boost Technology : 2.0
• Intel vPro® Platform Eligibility : Yes
• Intel® Hyper-Threading Technology : Yes
• Intel® Virtualization Technology (VT-x) : Yes
• Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
• Intel® VT-x with Extended Page Tables (EPT) : Yes
• Intel® Transactional Synchronization Extensions : Yes
• Intel® 64 : Yes
• Instruction Set : 64-bit
• Instruction Set Extensions : Intel® AVX2
• Idle States : Yes
• Enhanced Intel SpeedStep® Technology : Yes
• Intel® Demand Based Switching : Yes
• Thermal Monitoring Technologies : Yes
• Intel® Flex Memory Access : No
• Intel® Identity Protection Technology : No

Security & Reliability

• Intel® AES New Instructions : Yes
• Secure Key : Yes
• Intel® OS Guard: Yes
• Intel® Trusted Execution Technology : Yes
• Execute Disable Bit : Yes
